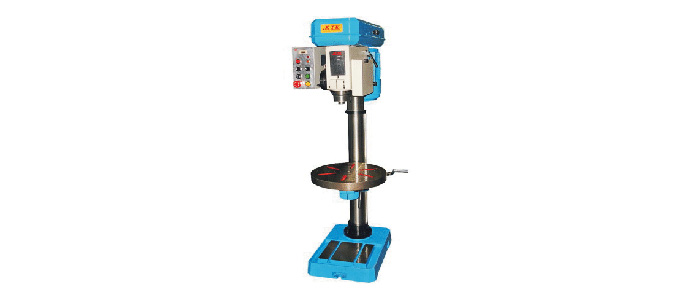

Tapping Machines - Geared Feed
1st Generation - Sutaible for production of up-to 15 pcs per minute.
Features under this category
- Tapping cycle (Tap forward - dwell - Tap reverse to home)
- Spindle drive through stepped pulley.
- TEFC motors with F class insulation.
- Automatic tapping is driven by gear pair which provides standard pitch, accurate threads and consistent quality of tapping.
- Easy replacement of gear pair for different pitches, fitted externally.
- Inbuilt Safety clutch mechanism to prevent breakage in case of spindle overload.
- Machines also available in fabricated stand model.
- Machines can be equipped with multi spindle heads for mass production.
| Geared Standard Tapping Machines | ||
| Model | GT25 | GT12 |
| Max. Tapping Capacity (S45C) | M16 | M10 |
| Spindle Taper | MT3 | MT2 |
| Spindle Travel | 120mm | 80mm |
| Spindle Speed | 255-2060 rpm | 470-1730 rpm |
| Column Diameter | Ø 102mm | Ø 80mm |
| Table Diameter | 420mm | 320mm |
| Base Size | 410*600mm | 300*500mm |
| Max Dist. Spindle To Table | 630mm | 400mm |
| Max Dist. Spindle to base | 930mm | 620mm |
| Motor HP | 2HP | 1HP |
| Overall Height | 1600mm | 1050mm |
| Weight | 220kgs | 100kgs |
Standard Accessories
- Operation and maintenance manual.
- V Belts
- Intermediate Table with Rack & Pinion arrangement for lifting and lowering of Work Table.
- Spindle motor of reputed brand, TEFC, F class insulation, 3 Phase, 50 Hz, 6 Pole Induction Motor with all drive elements.
- Comprehensive electrical control panel without motor protection device.
Optional Accessories
- Tool holders suitable for application.
- Coolant system consisting of reservoir tank with chip collection tray, separation baffles, coolant pump with 3 phases AC Induction motor, flexible piping & fittings, on/off valves, splash guards or chip collection tray etc.
- Machine lamp arrangement.
- Square work table.
- Jigs & Fixtures.
