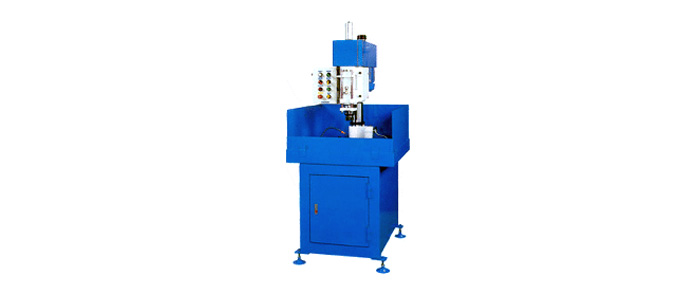

Tapping Machines - Air Hydraulic
1st Generation - Sutaible for production of up-to 15 pcs per minute.
Features under this category
- Air-Hydraulic Rapid Tapping Machine has rapid thru Hydro-Pneumatic supply & tapping cycle by lead screw mechanism.
- Tapping cycle (Rapid forward - Tap forward cycle - dwell - Tap reverse cycle - Rapid Return)
- Spindle drive through stepped timer pulley.
- TEFC motors with F class insulation.
- Automatic tapping is driven by Lead Screw which provides standard pitch, accurate thread and consistent quality level for tapping.
- Easy replacement of Lead Screw for different pitches, fitted externally.
- There is no reverse cut or pulling force on component during return stroke of tapping.
- Machines can be equipped with Multi-Spindle Heads for mass production.
| Pneumatic Rapid Standard Tapping Machine | |
| Model | |
| Maximum Tapping Capacity | |
| Rapid Device | |
| Tapping Device | |
| Spindle Taper | |
| Total Spindle Travel | |
| Rapid Spindle Travel | |
| Tapping Stoke | |
| Spindle Speeds (Optional) | |
| Throat (Column to Spindle Centre) | |
| Table Area | |
| Column Diameter | |
| Distance from Spindle To Table | |
| Motor HP | |
| Overall Height | |
| Weight (Approx) | |
Standard Accessories
- Operation and maintenance manual.
- Main motor of reputed brand, TEFC, F class insulation, 3 Phase, 50 Hz, 6 Pole Induction Motor with all drive elements.
- Comprehensive electrical control panels/operting pendant with duly wired to the basic machine.
- Hydro-Pneumatic Systems duly interfaced with the mother machine.
Optional Accessories
- Tool holders suitable for application.
- Variable frequency Drive for main spindle infinite speed variation.
- Coolant system-complete with necessary splash guards etc.
- Component orientation & clamping fixture as per application.
- Machine cladding.
- Centralized lubrication system if required.
- Job counters & lighting arrangement.
