SPM Moduler - Rotary Indexing Table

KTK Machines INDIA offers unique and wide range of S.P.M. modules to S.P.M. manufacturer.
Using KTK make modules gives great comfort for machine builders because of its simple construction specifically for assemblies. This enables machine builder to construct the machine with high speed. The machine can focus his concentration towards other assemblies as such fixtures and component proving.

Features under this category

Modular construction for S.P. M. manufacturer
Modules are of wide range and has unique feature of interchangeability.
Modules are simple in assembly and suitable for wide range of various applications.
In both orientation i.e. horizontal OR vertical, the Modules can be mounted easily.
The raw material used for modules while manufacturing are of precise quality grade. Because of that, the modules have long life and consistence performance during operations.
Modules are tested under strict norms.
The complete dimensional drawings in 2D presentation are available.

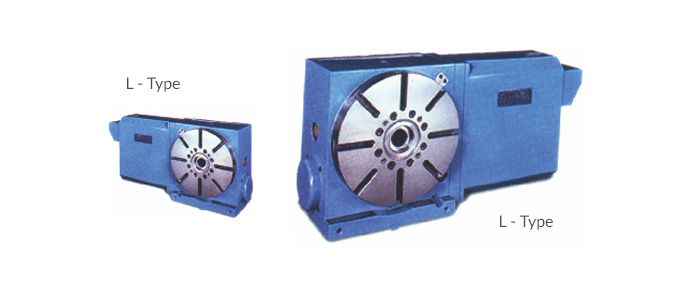

CNC Rotary Tables
Model		NCT-125	NCT-170	NCT-200	NCT-250	NCT-320
Table Diameter (mm)		Ø125	Ø170	Ø200	Ø250	Ø320
Table Center Hole Diameter (mm)		Ø40 H7	Ø50 H7	Ø60 H7	Ø50 H7	Ø60 H7
Table Center Through Hole Diameter (mm)		Ø25	Ø30	Ø40	Ø32	Ø46
Horizontal Position Height (mm)		150	190	195	200	230
Center Height of Vertical Position (mm)		110	135	135	170	210
Table T-Slot Width (mm)		235	275	273	300	375
Standard guide block Width (mm)		12 H7	12 H7	12 H7	12 H7	14 H7
Hydraulic Pressure (kg/cm2)		35	35	35	35	35
Minimum input increment (degree)		0.001o	0.001o	0.001o	0.001o	0.001o
Total Speed (Motor 2000rpm)	Rotation Speed (r.p.m.)	22.2	22.2	22.2	16.6	16.6
Total Speed (Motor 2000rpm)	Gear Ration	1/90	1/90	1/90	1/20	1/20
Servo Motor (Operational)	FANUC	α 2	α 4	α 4	α 8	α 12
	MITSUBHISHI	HF-44T	HF-53T	HA-53T	HF-103T	HF-203S
	SIEMENS	1FK7042	1FK7060	1FK7060	1FK7063	1FK7063
Rotation torque (kgf-m)		12	16	23	48	78
Indexing accuracy (accumulative) (sec)		60”	20”	20”	15”	15”
Repetitive accuracy (sec)		± 2”	± 2”	± 2”	± 2”	± 2”
Clamping Torque	F (kgf-m)	600	800	1000	1400	1700
	FxL (kgf-m)	15	17	24	50	85
	FxL (kgf-m)	20	40	65	85	110
Load Capacity	0 (degree) (kg)	100	150	200	250	350
Load Capacity	90 (degree) (kg)	50	70	85	100	150
Weight	Net (kg)	38	60	75	110	220
